Spark SQL
Spark SQL Pipeline

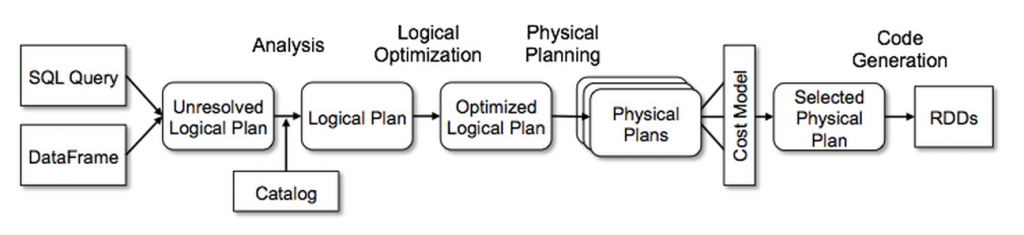

Spark SQL pipeline mainly categories into 4 parts
Spark perform various operations to convert given SQL query into RDD (Resilient Distributed Dataset).
Lets prepare our table. We will query against this table
Salary Table
| name | salary |
|---|---|
| tom | 80,000 |
| bob | 50,000 |
| alice | 180,000 |
| james | 160,050 |
| steve | 250,000 |
Employee Table
| name | department |
|---|---|
| tom | Accounting |
| bob | Legal |
| alice | IT |
| james | Legal |
| steve | Legal |
Lets say, we want to find all people and their department name who earns more than 100,000.
This translate to following query.
select
s.name, e.department
from salary s, employee e
where
salary > 100000
and s.name = e.name
Lets run this query through spark sql
Before spark perform any operation it simply convert sql code into data frame.
Query Parsing
During this stage, spark will parse the query and create a tree like structure for us. Spark uses Catalyst parser internally. This enable spark to validate the syntax of query and extract various part of query such projected fields, table, database, filter conditions and joins. This way spark generates Unresolved Plan
== Parsed Logical Plan ==
Project [name#14, department#21]
+- Filter ((salary#15 > 100000) && (name#14 = name#20))
+- Join Inner
:- SubqueryAlias `s`
: +- SubqueryAlias `employees`.`salary`
: +- Relation[name#14,salary#15] parquet
+- SubqueryAlias `e`
+- SubqueryAlias `employees`.`employee`
+- Relation[name#20,department#21] parquet
Logical Planning
In this phase, spark will read parsed query and with the help of Catalog it resolve attributes of the query such as identifying database of required table in query. All the projected field types and filter condition types. During this phase spark also determines how to read certain underlying files and their location. If this table is managed by external catalog such as Hive then spark will determine all these information from Hive metastore. (Note: AWS Glue is an example of external Hive meta store) This metastore persists metadata about tables. Spark uses Catalyst Analyzer during this phase. Its job is to simply resolve names of attributes in SQL query using information present in table. In simple At the end of this stage spark generates resolved logical plan.
== Analyzed Logical Plan ==
name: string, department: string
Project [name#14, department#21]
+- Filter ((salary#15 > 100000) && (name#14 = name#20))
+- Join Inner
:- SubqueryAlias `s`
: +- SubqueryAlias `employees`.`salary`
: +- Relation[name#14,salary#15] parquet
+- SubqueryAlias `e`
+- SubqueryAlias `employees`.`employee`
+- Relation[name#20,department#21] parquet
Query Optimization
During this phase, spark will applies set of rules and generates optimized plan. Analyzed Logical plan is represented as tree internally in spark. Spark Optimizer read through tree and run a batches of rules. Each rule will try to optimize and generate a new tree. At the end we will have optimized logical plan.
== Optimized Logical Plan ==
Project [name#14, department#21]
+- Join Inner, (name#14 = name#20)
:- Project [name#14]
: +- Filter ((isnotnull(salary#15) && (salary#15 > 100000)) && isnotnull(name#14))
: +- Relation[name#14,salary#15] parquet
+- Filter isnotnull(name#20)
+- Relation[name#20,department#21] parquet
Physical Planning & Execution
Spark now reads optimized logical plan and generate set of physical plans. SparkStrategies Physical plan actually translate the requested operations into RDD operations and execute them on executors. After aset of physical plans are generate spark evaluate them based on cost and pick the cheapest one. These cost are calculated using various statistics information available from meta store. Some of these statistics include total size of table, max, min value of columns, number of rows etc. Spark uses these information to improvise runtime. For example if our query is performing a join on two tables A and B. Size of table A is 10 mb and table B is 1 TB. Since we can easily store table A in memory and broadcast it to all executors. This will speed up our query execution due to map side join over sort merge joins. Once cheapest Physical plan is identified spark begins the execution and generate output.
== Physical Plan ==
*(2) Project [name#14, department#21]
+- *(2) BroadcastHashJoin [name#14], [name#20], Inner, BuildLeft
:- BroadcastExchange HashedRelationBroadcastMode(List(input[0, string, true]))
: +- *(1) Project [name#14]
: +- *(1) Filter ((isnotnull(salary#15) && (salary#15 > 100000)) && isnotnull(name#14))
: +- *(1) FileScan parquet employees.salary[name#14,salary#15]
: Batched: true,
: Format: Parquet,
: Location: InMemoryFileIndex[file:/Users/jalpan/spark-2.4.4/spark-warehouse/employees.db/salary],
: PartitionFilters: [],
: PushedFilters: [IsNotNull(salary), GreaterThan(salary,100000), IsNotNull(name)],
: ReadSchema: struct<name:string,salary:int>
+- *(2) Project [name#20, department#21]
+- *(2) Filter isnotnull(name#20)
+- *(2) FileScan parquet employees.employee[name#20,department#21]
: Batched: true,
: Format: Parquet,
: Location: InMemoryFileIndex[file:/Users/jalpan/spark-2.4.4/spark-warehouse/employees.db/employee],
: PartitionFilters: [],
: PushedFilters: [IsNotNull(name)],
: ReadSchema: struct<name:string,department:string>

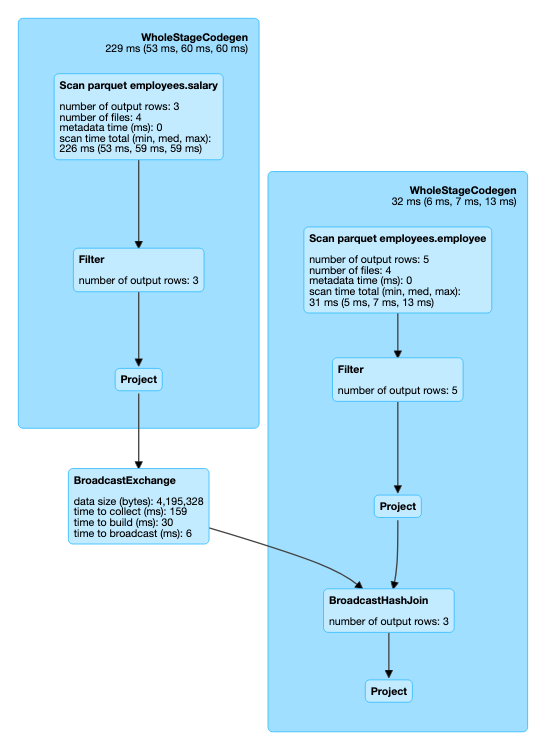

Execution DAG
Now we have high level idea and what happens under the hood on each stage. Lets dive little deeper into physical plan execution
Physical plan execution
During the physical plan execution spark perform 2 basic operations.
- File System Listing (Find all the candidate files where data is located)
- Record Reading (Read all files and generate output)
Spark provide 3 different ways of physical plan execution
- Hive Mode (a.k.a. File Input Format API)
- Datasource Mode (a.k.a Datasource v1 API)
- Datasource V2 Mode
We will look into each of this mode Next
